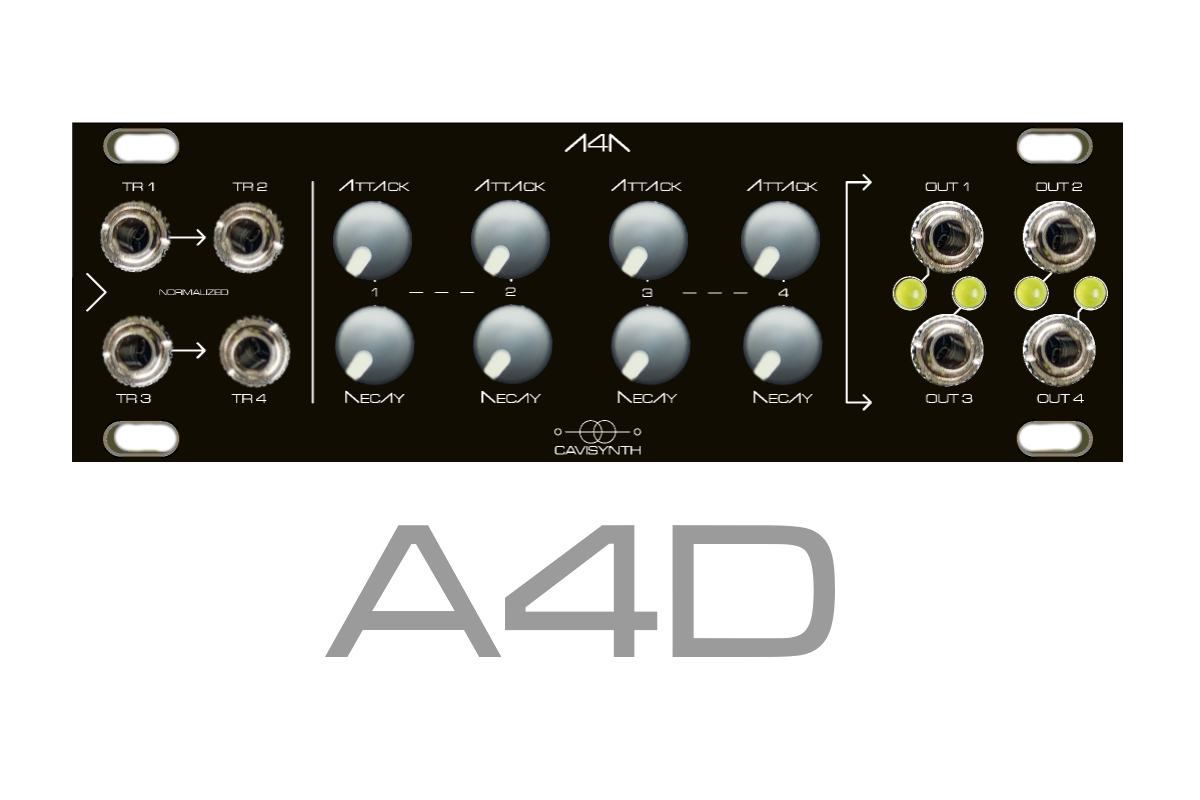

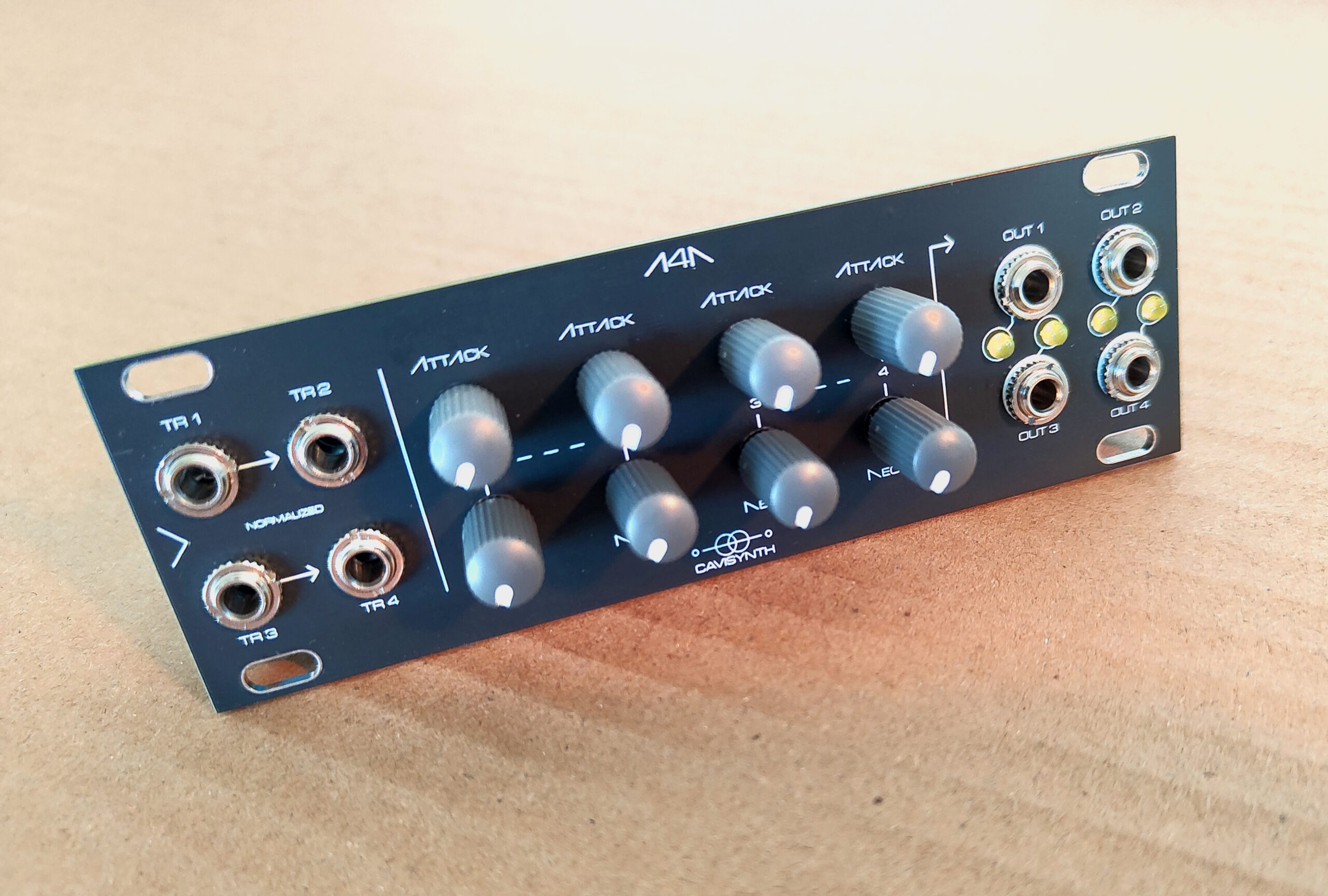

Introducing our newest addition to the Eurorack family: a powerful Quad Attack-Decay Envelope Generator that delivers exceptional flexibility in a compact form factor. This module provides four independent AD envelopes with intuitive normalization features to streamline your patching workflow.
Key Features
- Four Independent AD Envelopes: Create complex modulation patterns with four separate attack-decay envelope generators in a single module.
- Intelligent Normalization: Envelope 1 is normalized to Envelope 2, and Envelope 3 is normalized to Envelope 4 when no input is connected, allowing for cascading effects and reduced patching complexity.
- Precise Control: Fine-tune your sound with responsive attack and decay parameters for each envelope.
- Versatile Applications: Perfect for percussive sounds (if you trig’it) , filter modulation, amplitude shaping, and creative patch techniques.
- Space-Efficient Design: Maximize your rack space with multiple envelopes in a single module.

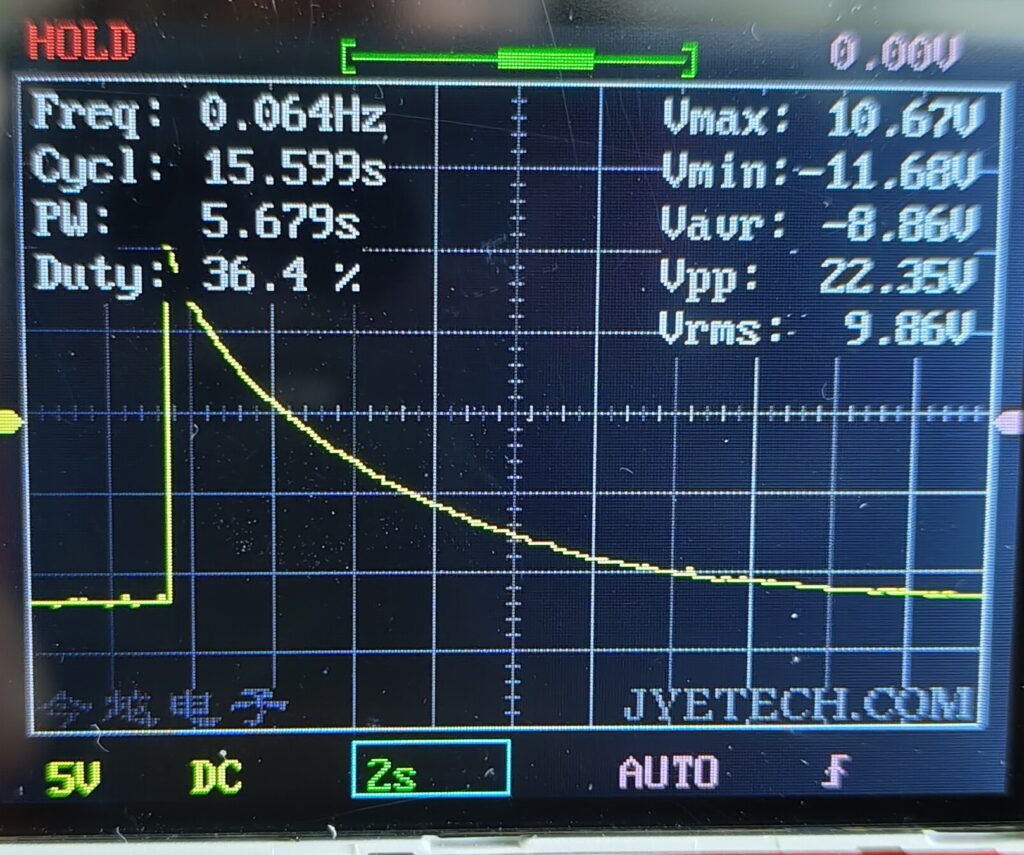

The decay length can vary between 0 and 20 seconds approximately, the same for the attack as long as the incoming signal (gate or long trigger) is maintained.
Technical specifications:
- Format – Eurorack 1U / Intellijel
- Power consumption – 0mA [-12V] // 25mA [+12V]
- Module width – 26HP (122mm)
- Module depth – 30mm (Skiff friendly)
- Weight – 75g
